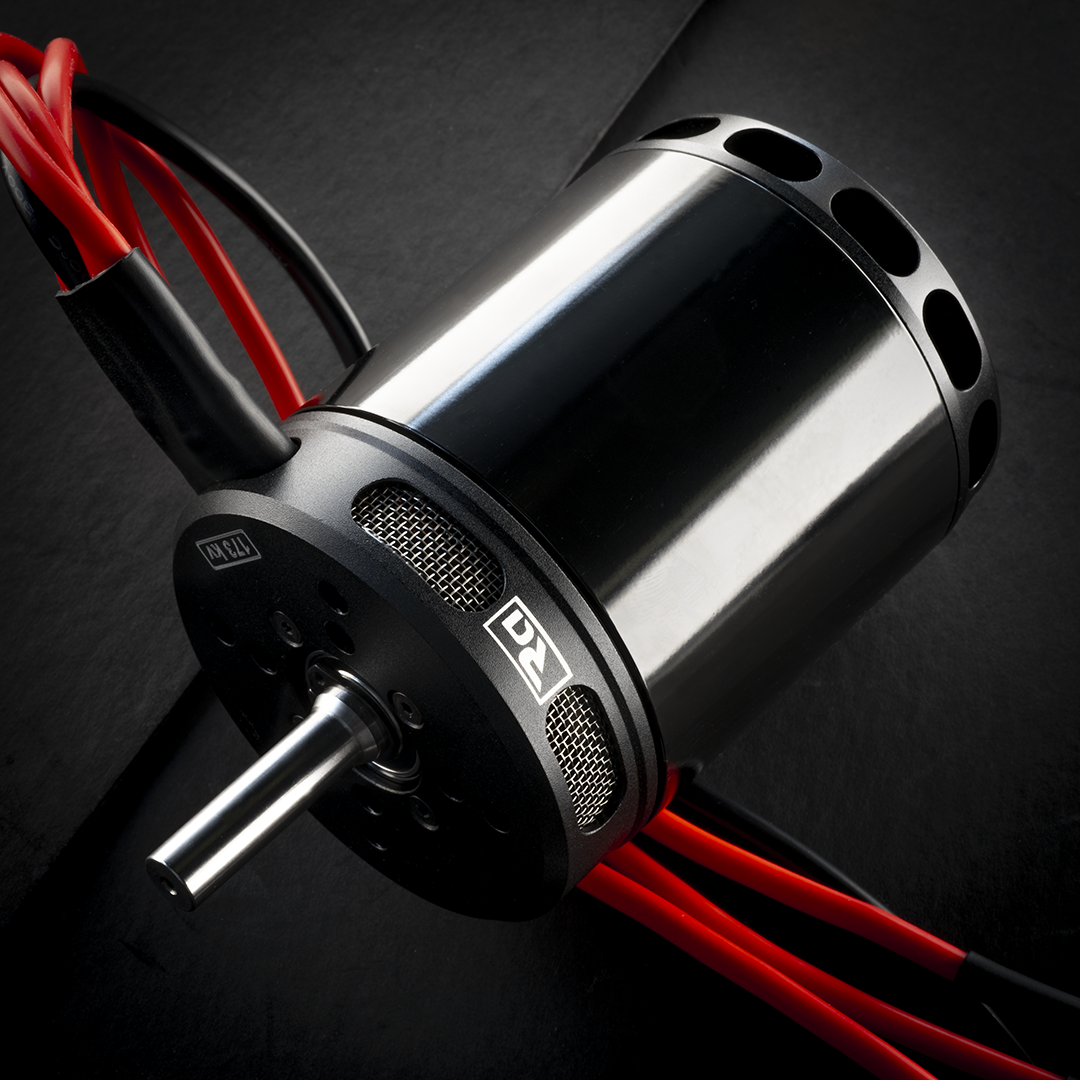

Radium Performance® Motor 6485 - LACROIX 10mm shaft version

Modified to have identical shaft and mounting pattern as the original Lacroix 6389 motors.

These motors have a 10 mm diameter shaft, 33.7 mm length, with a keyway and two circlip grooves to retain a pulley without grub screws.

Features

• High efficiency — typically increases range by 10–20%
• High power density — punches above their weight
• Long lifespan — replaceable quad high-load NMB bearings
• Active cooling — built-in fan reduces operating temps
• Front-mounted sensor system — never skips a beat

Specifications

• 7026 W
• 64 mm diameter, 85 mm length
• 10 mm shaft, 33.7 mm length with keyway and circlip grooves
• High-quality enamel windings rated to 220°C
• Curved N45SH magnets rated to 150°C
• Battle hardened with high-quality epoxy
• Sensored with 2 mm JST plug for VESC
• 12 AWG phase wires with 4 mm / 5.5 mm AMASS bullets
• 44 and 30 mm mounting pattern
• 100°C max operating temperature (recommend VESC settings: 100°C start, 115°C end, Beta value 3950 K)
• Weight: 1100 g
• Includes: 1× motor, 2× pulley circlips, 4× M4 mounting screws, 1 x motor key

12-month warranty on manufacturing defects
